08-Size (08-Size)

More copper wire turns deliver more magnetic flux per current input.

Coils are housed in a durable 30% glass-filled thermoplastic casing, providing a rigid base for coil terminations.

HydraForce offers many standard types of electrical connections and will consider OEM requests for special terminations.

HydraForce can provide windings precisely-tailored for special OEM applications. Some of the common windings are listed below. If these do not meet your requirements, consult factory.

Rather than using heat sinks or external cooling methods, HydraForce uses larger coils for lower heat rise, stronger magnetic force and longer coil life. HydraForce coils can be operated continuously at ambient temperatures to 100°C without challenging the coil’s insulation system.

All windings are DC. AC service coils are internally full-wave rectified, so cartridges are voltage-interchangeable and do not exhibit AC “buzz” or suffer burn-out due to partial armature shift. HydraForce DC coils are UL Listed under File #AU2326.

Thick iron surrounds the copper winding, increasing the coil’s flux density and therefore its power as an electromagnet.

HydraForce coils are made with high quality, Class H magnetwireand insulation materials.

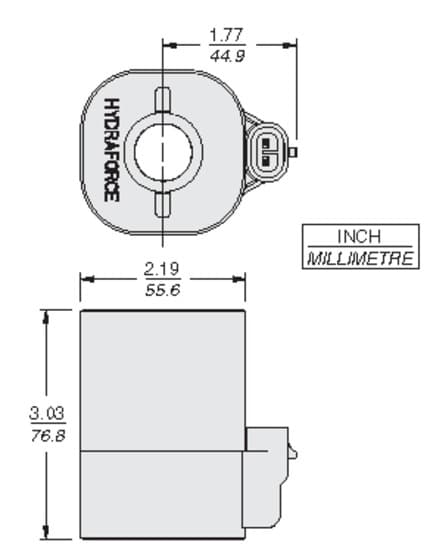

EHPR-Size (EHPR-Size)

Read More

12-Size (12-Size)

Read More

10-Size (10-Size)

Read More

08-Size (08-Size)

Read More
